Environmental light weight Cement Grout Mixer energy conservation

Cement Grout Mixer

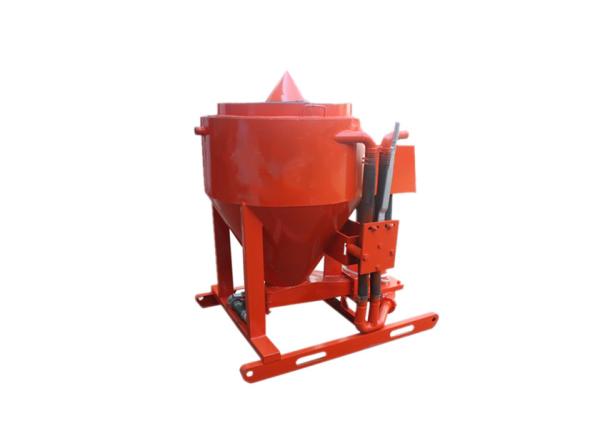

Description of Cement Grout Mixer:

Cement grout mixer 400type is a rapid pulping machine supporting BW150 grouting pump, BW160/10 grouting pump and BW250 grouting pump. The cement grout mixer is the preparation of professional equipment, mainly used for water and electricity, railway, transportation, construction, mining and other industries, to cement, bentonite, etc., mixed with water and additives and quickly made into slurry, the aircraft used eddy current pulping, compared wiht general listed blade mixer are fast plup, slurry to mix evenly, etc.

Parameters of Cement Grout Mixer:

Structure and working principle of Cement Grout Mixer:

Electric Grout mixer is driven by a vertical motor, and is fixed on the support frame of the cantilever structure by the bearing seat and the main shaft through the key connection. The blades are serrated and have large shearing force, which can generate irregular strong eddy currents. At the same time, they can tear and smash solid fluids for high-dispersion mixing. The circulating pump of the shaft is forced to send the slurry, and the slurry in the barrel is quickly and uniformly circulated by the pump, and the pulping speed is fast, which takes less than two minutes. Not only the pulping time is fast, but also the prepared pulp is uniform and sufficient, and there is no agglomeration and fish-eye effect, so it is especially suitable for making high-concentration pulp.

Henan Tytion Machinery Co., Ltd is a joint venture enterprise which is mainly offer construction support machine, such as: cement grout pump; high pressure grouting pump; mortar grout pump; hydraulic grouting pump (for two liquid grouting); dry mix shotcrete machine; wet shotcrete machine; concrete pump; tunnel machine; and environment friendly equipment: scrap shear machine and hydraulic baling machine.
