| Brand Name : | Tytion |
| Model Number : | SP90D |
| Certification : | CE, SGS |
| Price : | negotiation |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 100 sets per month |
| Delivery Time : | 5-8 work days |
wet shotcrete Concrete Gunite Machine Price continuous working
Gunite Machine Price
Description of Gunite Machine Price:
Hydraulic and electromagnetic reversing system is the main role of
concrete pump movement control, pressure adjustment, is the control
element of power machine. It mainly consists of solenoid valve,
safety relief valve and valve body, oil tank, oil pipeline and so
on. The whole oil pipeline design is optimized, the heat loss is
low, and the system is more stable. The motor and gear pump provide
sufficient power support for the hydraulic system, and the pressure
of the relief valve is adjustable to provide stable pressure for
the whole system. It is equipped with inlet and outlet oil filter,
pressure measuring joint and 40MP pressure gauge, which can monitor
and adjust the pressure of the system. The reversing of the pump is
dependent on two normally open inductance type access switches of
the main cylinder (model: PR18-8DN; DC24V) when the proximity
switch senses the signal, the signal is transmitted to PLC, and
then PLC issues instructions to control two groups of solenoid
valves to change the running direction of oil circuit, and control
the corresponding cylinder action to complete the reversing.
Parameters of Gunite Machine Price:
| Model | SP90D | |
| Throughput | 3-6 m3/h | |
| Maximum conveying distance | 60/30 m | 60/40 m |
| Maximum aggregate size | ≤15 mm | |
| Conveying pipe diameter | 57 mm | |
| Conveying working pressure | 20 MPa | |
| Power | 22 Kw | |
Use and Operation of Gunite Machine Price:
Gunite spray machine has two functions of tidal spraying and wet
spraying. Before using it, the operator must read the Instructions
for Use carefully and be familiar with the structure and operation
rules of the machine before going on duty.

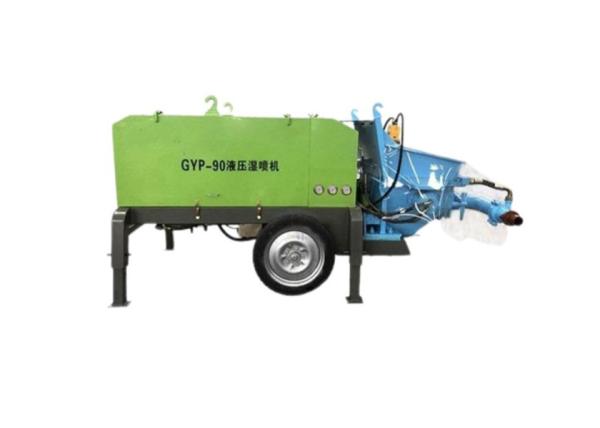

Picture of Gunite Machine Price:
|
|
