Accurate Measurement Widely Used CNC Bending Machine New Technology
CNC Bending Machine
Features of CNC Bending Machine:
1. Control: CNC bending and arch machine has PLC program controller
control, full hydraulic system automatic reading can be manually
controlled or CNC control.
2. Operation: unlimited feeding, can be in or out, cylinder
progress size automatic positioning without manual measurement,
bending size automatic reading.
3. Safety: double automatic shutdown system, automatic shutdown
when reaching the size, infrared brake system, automatic shutdown
when no material.
Parameter of CNC Bending Machine:
| Parameters/Name | LWGJ-300 I-steel cold bending machine |
| Maximum bending area | 250 cm2 |
| Bending speed | 6-6.2 m/min |
| Bending limit | S=345 MPa |
| Specification of machine | 25# |
| Working pressure of hydraulic system | ≤16MPa |
| Hydraulic cylinder propulsion speed | 1-10 mm/s |
| Hydraulic cylinder jacking force | 50 T |
| Effective stroke of hydraulic cylinder | 300mm |
| Rated oil pump pressure | 16 Mpa |
| Reducer type | 42# |
| Driving power | 5.5*2 |
| Totol power | 18 kw |
| Diamension(L*W*H) | 2800*1600*1800 mm |
| Weight | 2350 KG |

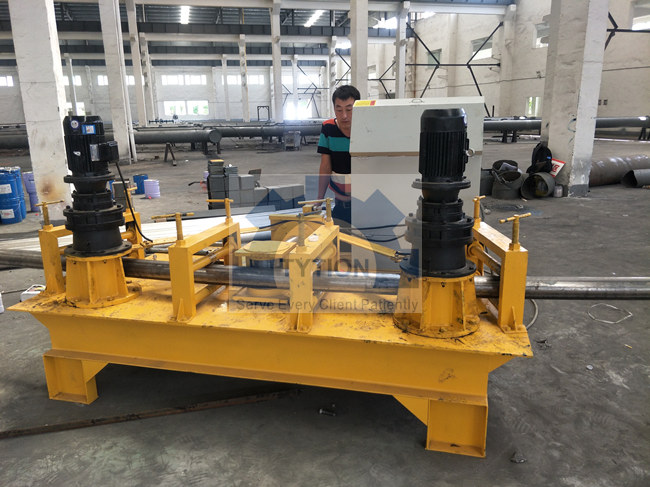

Pictures of CNC Bending Machine:
|
|
