Piling Foundation New Design Desanding Machine Mud Recycling System
Desanding Machine
Features of Desanding Machine:
1. The abundant of mud purification, useful performance index of
the mud manipulation, cut sticking issue, progress made hole
quality.
2. Complete the mud circulating use, saves the mud making
materials. Slash waste pulp outbound capital and mud making cost.
3. Equipment useful separation of slag soil pore power is conducive
to progress.
4. Mud closed-circuit circulation purification method and low
moisture content of the slag material cutting's impact on the
environment.
5. Choose double screen, purifying effect than single screen
progress nearly 50% above, safe and convenient operation, and
protect a brief, stable and reliable operation.
Parameter of Desanding Machine:
| Model | 100-A | 100-B | 100-C | 150-A | 150-B | 200-A | 200-B | 250-A | 250-B | 250-C | 250-D |
| Slurry handle Capacity (m3/h) | 80 | 100 | 120 | 150 | 150 | 200 | 200 | 250 | 250 | 250 | 250 |
| Motor | 1kw | 8kw | 23kw | 2.2kw | 25kw | 3kw | 25kw | 3kw | 25kw | 26kw | 53kw |
| Slag screen capacity (Ton/H) | 15-26 | 15-26 | 15-26 | 25-50 | 25-50 | 25-80 | 25-80 | 35-90 | 35-90 | 35-90 | 35-90 |
| After screen max moisture rate | 30% | 30% | 30% | 30% | 30% | 30% | 30% | 30% | 30% | 30% | 30% |
| After screen slurry sand rate | ＜2% | ＜2% | ＜2% | ＜2% | ＜2% | ＜2% | ＜2% | ＜2% | ＜2% | ＜2% | ＜2% |
| Screen size D50 | 30 μm | 30 μm | 30 μm | 45 μm | 45 μm | 60 μm | 60 μm | 70 μm | 70 μm | 70 μm | 70 μm |
| Weight (Kg) | 800 | 1500 | 1800 | 1600 | 3500 | 1800 | 3300 | 2000 | 3600 | 3600 | 4800 |
Advantages of Desanding Machine:
1. It can be used in conjunction with the sand washing machine on the sand making production line, or it can be operated independently to improve resource utilization and maximize customer profits.
2. It can effectively reduce the loss of fine sand and control it within 10%, and it can also solve the problems of high fineness modulus of finished sand and low amount of stone powder in stone production.
3. The fine sand in the stone can be fully recovered, the workload of the sedimentation tank is reduced, the cleaning cost is reduced, and the customer's investment cost is low.
4. The fine materials produced in the production can be directly supplied to the market, and the accumulation time is short.

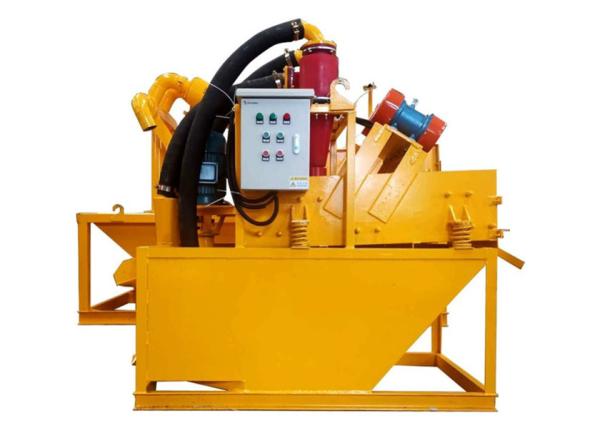

Pictures of Desanding Machine:
|
|
