Brand Name : | Tytion |
Model Number : | GSY/20-22 |
Certification : | CE, SGS, BV, ISO |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 120 sets per month |
Delivery Time : | 3-5 working days |
High Pressure Two Liquids Cement Injection Grouting Pump High Speed
Cement Injection Grouting Pump
Description of Cement Injection Grouting Pump:
Cement injection grouting pump structure is mainly composed of
motor drive system, hydraulic transmission system, material
cylinder pumping system, heat dissipation system, electrical safety
system, lubrication system, frame system, etc.
The working principle of the cement injection grouting pump is that
it is composed of two independent pump heads and the cylinder
respectively to inhale two different liquids into the construction
body after being mixed by the mixer, and the driving part is that
the motor drives the gear pump to produce pressure oil.
Parameters of Cement Injection Grouting Pump:
Model | GSY20-22 | |
Cylinder diameter | 80mm | |
Motor power | 22kw | |
Gear pump type (pressure) | JHP2050P(25Mpa) | |
Grouting capacity | 4-5m³/h | |
Outlet pressure | 1.5-20Mpa | |
Noise power level | 110dB(A) | |
Outlet diameter | 51mm | |
Inlet diameter | 38mm | |
Cylinder number | 2 | |
Particle diameter size | ≤5mm | |
Suction Height | 2m | |
Dimension size | 1975x700x1250mm | |
Tank volume | 70L | |
Weight | 550kg |
Working Performance of Cement Injection Grouting Pump:
Cement injection grouting pump is professional grouting equipment,
which can realize both single-liquid grouting and double-liquid
grouting. Because of the full hydraulic pressure, small size and
light weight, it can be used in a wide range of construction. Good
adjustability: the pump's pressure displacement can be arbitrarily
adjusted within the design range. When the pressure exceeds the
allowable pressure, the relief valve will automatically open and
the cylinder and working cylinder will stop working, thus playing a
safe role. The motor and air cooler of this series of grouting pump
can be used in flammable and explosive construction sites such as
coal mines after being replaced with explosion-proof components. A
shock-resistant pressure gauge is installed in the hydraulic
system, which can accurately reflect the working state of the pump.
This series of hydraulic grouting pumps can also be used as water
pumps, sewage pumps and mud pumps.

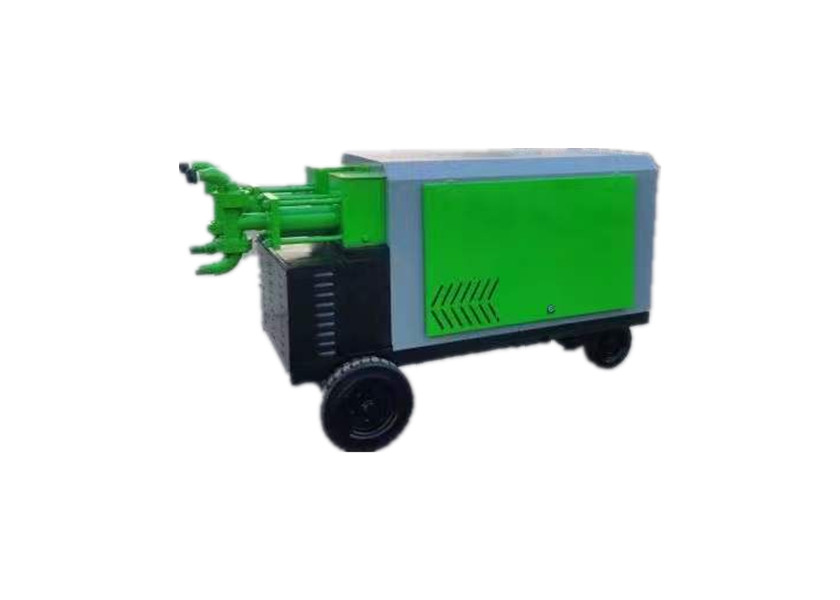

Pictures of Cement Injection Grouting Pump:
![]() |
