40-48 Mpa High Pressure Cement Grouting Pump

    Buy cheap 40-48 Mpa High Pressure Cement Grouting Pump from wholesalers

    Buy cheap 40-48 Mpa High Pressure Cement Grouting Pump from wholesalers
    • Buy cheap 40-48 Mpa High Pressure Cement Grouting Pump from wholesalers

    40-48 Mpa High Pressure Cement Grouting Pump

    Ask Lasest Price
    Brand Name : Tytion
    Model Number : TY55K
    Certification : CE, SGS, ISO
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 120 sets per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    40-48 Mpa High Pressure Cement Grouting Pump

    Use Friendly Cement Slurry High Pressure Grouting Pump Large Output


    Cement Slurry High Pressure Grouting Pump


    Characteristics and Application Range of High Pressure Grouting Pump:

    1. This series of high-pressure grouting pumps is a light high-pressure grouting pump which is well developed to adapt to the growing high-pressure grouting technology.
    2. High Pressure Grouting Pump, it can pump fresh water, high density cement slurry and other media of the latest generation of products, equipped with speed control mechanism, can be used as variable displacement pumps.
    3. It has the characteristics of reasonable parameters, advanced technology, reliable quality, excellent performance and beautiful appearance.
    4. This series of high pressure pumps can be used in the following fields soft foundation treatment, high pressure jet grouting; High pressure water jet assisted rock breaking and coal caving; Hydraulic prop fluid supply in coal mine;
    5. The anchorage pumps high-pressure water with hydraulic expansion metal rod-laying.
    6. Silt Cleaning and Cleaning of Large Underground Pipelines chemical pump; High-pressure water jet drilling through holes horizontally; Pumps for other purposes of grouting.


    Parameters of High Pressure Grouting Pump:

    TypeTY55KTY90k
    Motor power55kw90kw
    Type of motorYE2VP280M-6YE2VP280M-4
    Function formHorizontal reciprocating single acting plungerHorizontal reciprocating single acting plunger
    Plunger quantity33
    Plunger diameter50mm50 mm
    Working stroke100 mm100 mm
    Input speed390~900 R/min590~1330 R/min
    Discharge volume32~75 L/min50~110 L/min
    Working pressure40-48 Mpa33 Mpa
    Suction pipe diameter64 mm64 mm
    Discharge pipe diameter19 mm19 mm

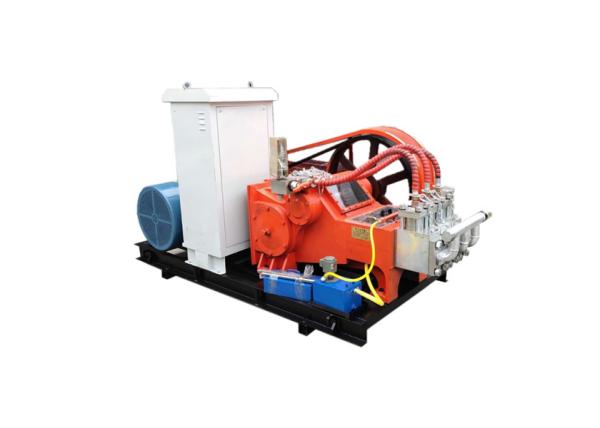

    Pictures of High Pressure Grouting Pump:

    Quality 40-48 Mpa High Pressure Cement Grouting Pump for sale
