| Brand Name : | Tytion |
| Model Number : | TK600 |
| Certification : | CE, SGS |
| Price : | negotiation |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 100 sets per month |
| Delivery Time : | 5-8 work days |
Wet mixed Concrete material Shotcrete Sprayer For Sale thin flow shotcrete
Shotcrete Sprayer For Sale
Accelerator metering adding system of Shotcrete Sprayer For Sale:
The system is mainly composed of accelerator box, metering pump,
atomizer, accelerator supply valve, water supply valve, cleaning
water valve and so on. The metering pump sends the liquid
accelerator from the accelerator box to the nebulizer through the
accelerator supply valve according to the set output. In the
atomizer, it is mixed with the auxiliary air flow from the
distributor and atomized, and then sent to the nozzle through the
pipe to be mixed with the concrete material and sprayed to the
sprayed surface together with the concrete material. See metering
pump instruction manual for specific structure and instructions.
Parameters of Shotcrete Sprayer For Sale:
| Model | TK600 | |
| Throughput | 4-6 m3/h | |
| Maximum conveying distance | 40/20 m | |
| Maximum aggregate size | ≤20 mm | |
| Conveying working pressure | 0.4-0.6 MPa | |
| Power | 7.5 Kw | |
Use and Operation of Shotcrete Sprayer For Sale:
Shotcrete Machine for sale has two functions of tidal spraying and
wet spraying. Before using it, the operator must read the
Instructions for Use carefully and be familiar with the structure
and operation rules of the machine before going on duty.

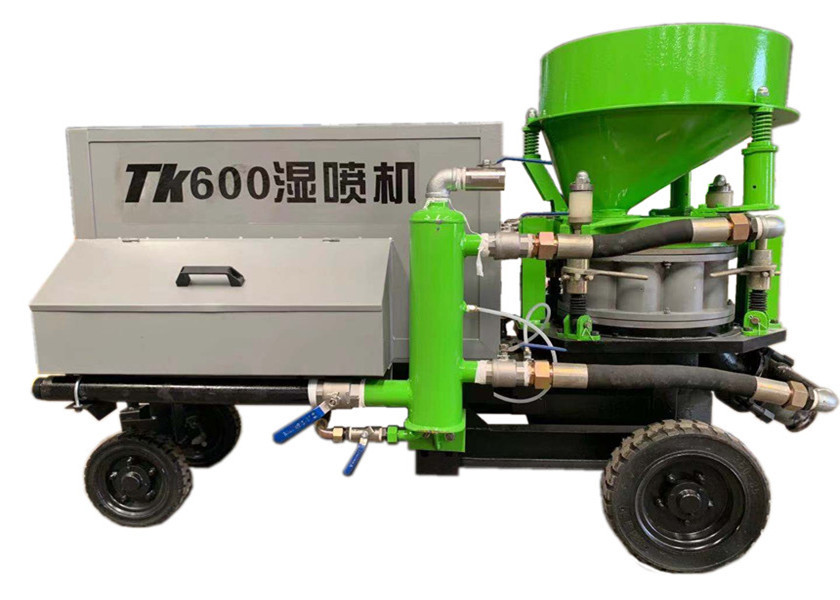

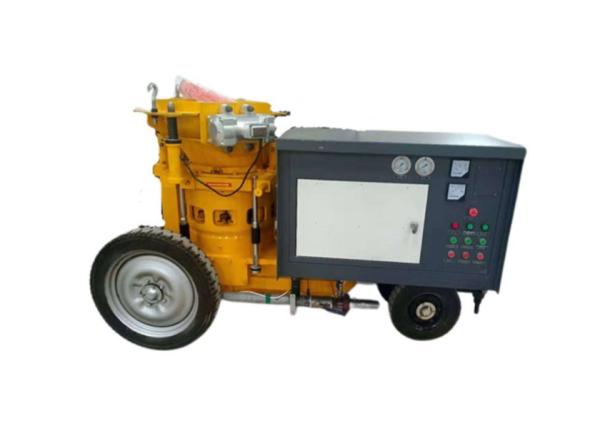

Pictures of Shotcrete Sprayer For Sale:
|
|
