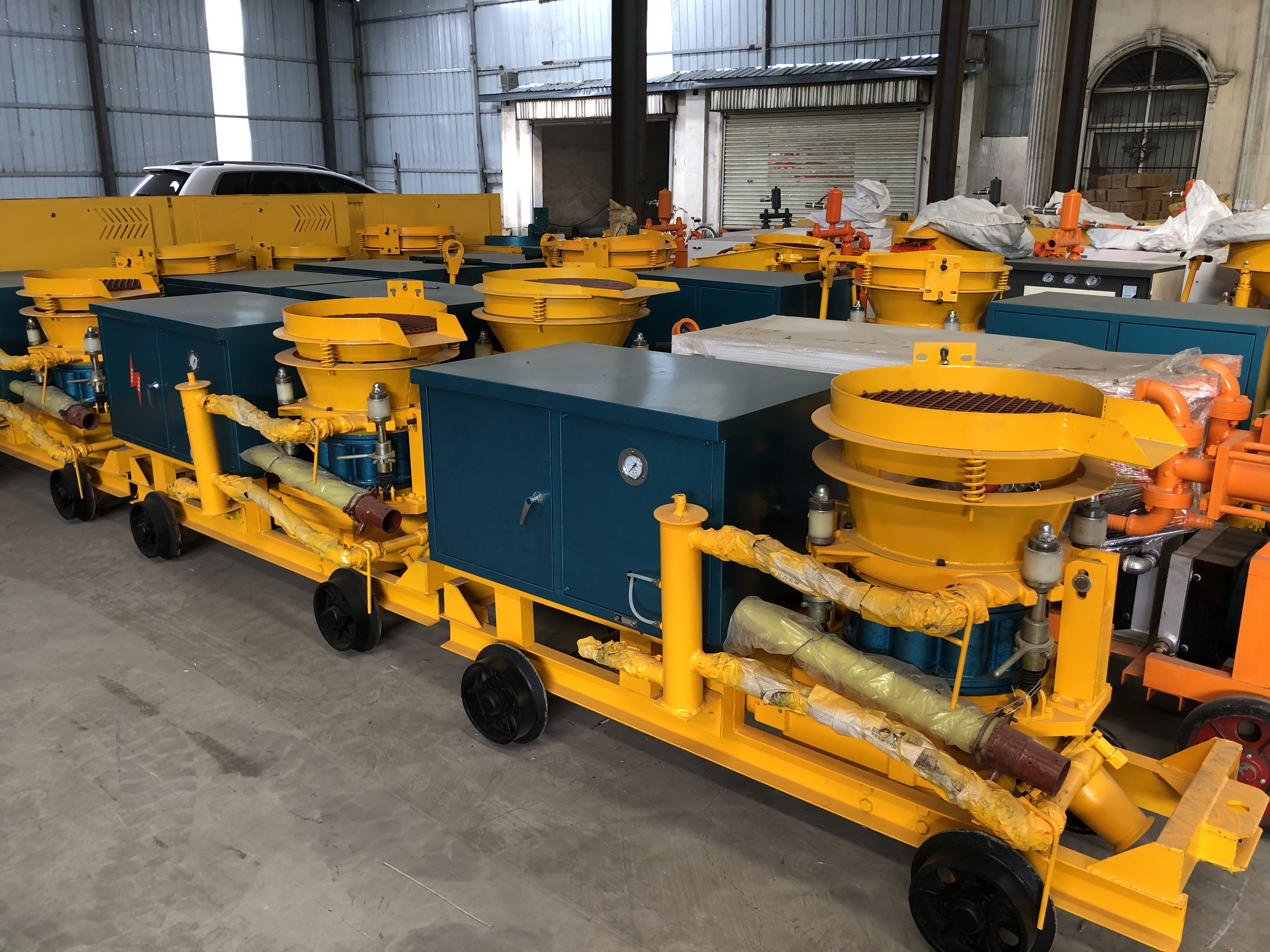

Electric Works Movable Wet Shotcrete Machine 30 Meters Distance
Wet Shotcrete Machine
Description of Wet Shotcrete Machine:
1. Wet Shotcrete Machine is wet sprayer series,it has the
characteristics of advanced technology, reasonable structure,
stable performance, convenient operation and maintenance, long
service life, etc. It is suitable for shotcrete construction of
roadway in high marsh mine.
2. It is a new type of high efficient concrete spraying machine, which is mainly used for wet spraying of concrete.
Parameters of Wet Shotcrete Machine:
| Model | SP-6 | SP-7 |
| Throughput | 6 m3/h | 7 m3/h |
| Maximum conveying distance | 30/20 m | 30/20 m |
| Water cement ratio of suitable materials | 0.20 -0.40 | 0.20 -0.40 |
| Maximum aggregate size | Ф 15 mm | Ф 15 mm |
| Inner diameter of conveying pipe | Ф 15 mm | Ф 15 mm |
| Conveying working pressure | 0.2-0.4 MPa | 0.4-0.6 MPa |
| Gas Consumption for Feeding | 10 m3/min | 12 m3/min |
| Charging height | 1.1 m | 1.1 m |
| Rotor speed | 11 r/min | 11 r/min |
| Power | 5.5 Kw | 7.5 Kw |
Use and Operation of Wet Shotcrete Machine:
Wet Shotcrete Machine has two functions of tidal spraying and wet
spraying. Before using it, the operator must read the Instructions
for Use carefully and be familiar with the structure and operation
rules of the machine before going on duty.
|
|
