| Brand Name : | Tytion |
| Model Number : | SP90D |
| Certification : | CE, SGS |
| Price : | negotiation |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 100 sets per month |
| Delivery Time : | 5-8 work days |

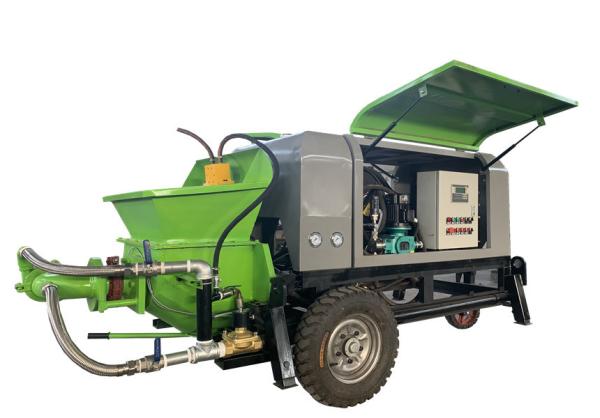

Diesel driven movable Gunite Spray Machine slope reinforcement
Gunite Spray Machine
Description of Gunite Spray Machine:
SP series gunite spray machine is mainly composed of frame assembly, oil pump electric unit, hydraulic and solenoid valve reversing system, PLC integrated electrical automatic control system, concrete pumping system, hopper device, injection system, lubrication cooling and heat dissipation system, etc.
Parameters of Gunite Spray Machine:
| Model | SP90D | |
| Throughput | 3-6 m3/h | |
| Maximum conveying distance | 60/30 m | 60/40 m |
| Maximum aggregate size | ≤15 mm | |
| Conveying pipe diameter | 57 mm | |
| Conveying working pressure | 20 MPa | |
| Power | 22 Kw | |
Use and Operation of Gunite Spray Machine:
Gunite spray machine has two functions of tidal spraying and wet
spraying. Before using it, the operator must read the Instructions
for Use carefully and be familiar with the structure and operation
rules of the machine before going on duty.
|
|
