Dust Extraction Movable Shotcrete Spraying Machine easy operation

Shotcrete Spraying Machine

Pneumatic Conveying System of Shotcrete Spraying Machine:
The system is mainly composed of distributor, pressure gauge, main air manual valve, upper air manual valve, lower air manual valve, transmission pipeline, nozzle, pressure gauge and so on. The pressure flow introduced by the main air route is divided into upper air route and lower air route through the distributor. The air flow in the upper air passage passes through the rotor body material cavity and brings the concrete material in the cavity into the cyclone. The lower air flow directly enters the cyclone, and the concrete material is fully dispersed in the cyclone and sprayed to the sprayed surface through the conveying pipeline. The top end of the air distributor is provided with a manual valve, which can supply air to the air booster in the middle of the main pipe in order to increase the conveying distance. The other auxiliary air flow led by the air distributor is used to transport liquid accelerator.

Parameters of Shotcrete Spraying Machine:

Use and Operation of Shotcrete Spraying Machine:
Shotcrete Spraying Machine has two functions of tidal spraying and wet spraying. Before using it, the operator must read the Instructions for Use carefully and be familiar with the structure and operation rules of the machine before going on duty.

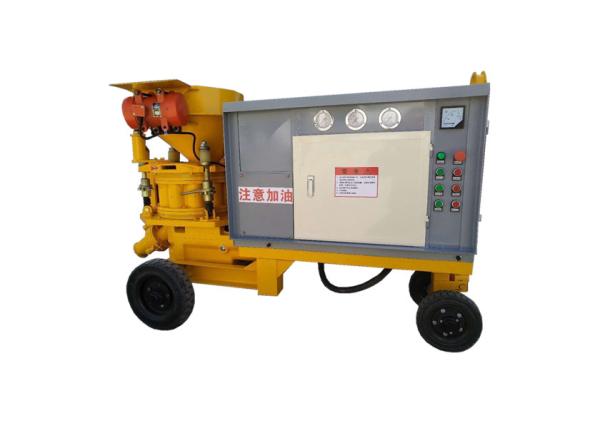

Pictures of Shotcrete Spraying Machine:

Henan Tytion Machinery Co., Ltd is a joint venture enterprise which is mainly offer construction support machine, such as: cement grout pump; high pressure grouting pump; mortar grout pump; hydraulic grouting pump (for two liquid grouting); dry mix shotcrete machine; wet shotcrete machine; concrete pump; tunnel machine; and environment friendly equipment: scrap shear machine and hydraulic baling machine.
