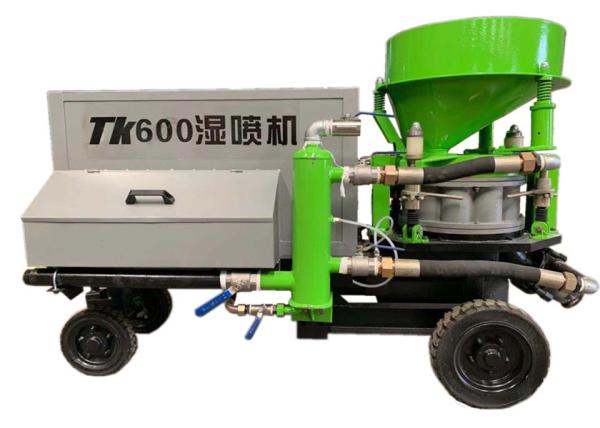

Wet Dry Dual use 7.5kw Concrete Shotcrete Machine Easy Operation
Concrete Shotcrete Machine
Feeding System of Concrete Shotcrete Machine:
The system is mainly composed of hopper body, hopper seat, guide,
vibration motor, rotor body and so on. According to a certain
gradation and water cement ratio, the concrete material is mixed
into the rubber cavity of the rotor body through the screen on the
hopper body under the forced vibration of the vibration motor. The
rubber cavity is evenly distributed around the rotor body, and the
rubber cavity rotates with the rotor body, so as to continuously
send the concrete into the cyclone assembly. Guide is our
technology. It is installed at the outlet of the hopper seat. Its
main function is to ensure the smooth entry of materials into the
rubber cavity.
Parameters of Concrete Shotecrete Machine:
| Model | TK600 | |
| Throughput | 4-6 m3/h | |
| Maximum conveying distance | 40/20 m | |
| Maximum aggregate size | ≤20 mm | |
| Conveying working pressure | 0.4-0.6 MPa | |
| Power | 7.5 Kw | |
Use and Operation of Concrete Shotcrete Machine:
Gunite spray machine has two functions of tidal spraying and wet
spraying. Before using it, the operator must read the Instructions
for Use carefully and be familiar with the structure and operation
rules of the machine before going on duty.
|
|
