| Brand Name : | Tytion |
| Model Number : | PZ-5 |
| Certification : | CE, SGS |
| Price : | negotiation |
| Payment Terms : | Western Union, L/C, T/T |
| Supply Ability : | 180 sets per month |
| Delivery Time : | 5-8 work days |
Movable Compact Structure Shotcrete Machine For Sale long service
Shotcrete Machine For Sale
Structure of Shotcrete Machine For Sale:
1. Injection system:
The system is composed of feeding hose and nozzle, the nozzle is
made of polymer material pressure injection, water pipe, water
ring, water valve fixed on the nozzle.
2. Electrical control device (no control box when explosion-proof
motor is used):
The control device consists of leakage air automatic switch, motor
and AC contactor, safety device and start stop button, which can
realize leakage, over current, short circuit and other protection
functions.
3. Dust removal device:
The device consists of compression pad, cover, dust removal
pipeline, dust collector and so on.
Parameters of Shotcrete Machine For Sale:
| Technical | Parameters | ||||
| Model | PZ-5 | PZ-6 | PZ-6F | PZ-7 | PZ-9/WSP |
| Throughput(m3/h) | 5-5.5 | 6 | 6-7 | 7 | 9 |
| Transport Distance (Tidal Spray) (m) | 200 | 200 | 200 | 200 | 200 |
| Applicable Material (Cement/Sandstone) Ratio | 1:3～5 | 1:3～5 | 1:3～5 | 1:3～5 | 1:3～5 |
| Applicable Material (Water/Ash) Ratio | ≤0.4～0.45 | ≤0.4～0.45 | ≤0.4～0.45 | ≤0.4～0.45 | ≤0.4～0.45 |
| Aggregate size (mm) | φ20 | φ20 | φ20 | φ20 | φ20 |
| Working Pressure (MPa) | 0.2～0.4 | 0.2～0.4 | 0.6～0.8 | 0.6～0.8 | 0.6～0.8 |
| Feeding height (m) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Rotor speed (r/min) | 11 | 11 | 11 | 11 | 11 |
| Motor Power (KW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 |
| Motor speed (r/min) | 960 | 960 | 960 | 960 | 960 |
Operation Method of Shotcrete Machine For Sale:
After the preparation work is finished, the mixing material can be
added to the machine. The machine operator should first open the
main valve, the valve of the upper air duct opens 1/3 circles, and
then adjust the air pressure of the lower air duct (to the cyclone)
to about 0.05-0.1 MPa (depending on the delivery distance). Then
the sprayer opens the nozzle valve and gives the wet rock surface.
At this time, the operator can start the machine and start
shotcreting. Now the working pressure is about 0.2-0.4 MPa.
According to the water-cement ratio of mixtures and the length of
conveying distance, after adjusting and determining the wind
pressure to the cyclone, the upper air pipe valve is opened again
until there is no more material leakage at the machine outlet.

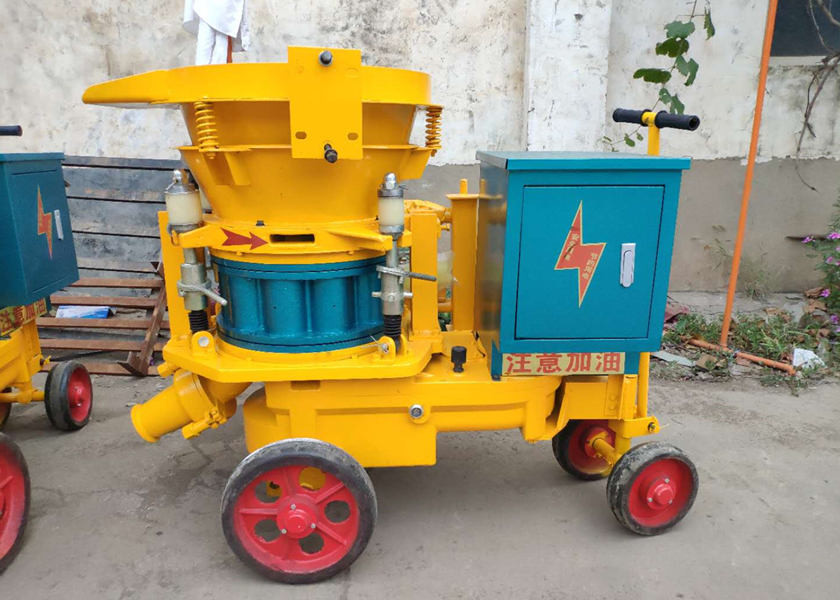

Pictures of Shotcrete Machine For Sale:
|
|
