New technology durable Rebar Bending Machine rational structure
Rebar Bending Machine
Failure analysis of Rebar Bending Machine:
No stress at work:
1. Press the cylinder forward or back button. If the cylinder can
move forward or back, but the pressure gauge does not show
pressure, check whether the pressure regulating valve is jammed by
stolen goods.
2. Turn off the machine, remove the pressure regulating valve
(please do not drop the small accessories when removing), clean
with diesel oil or gasoline, and then put back to original
Parameter of Rebar Bending Machine:
| Parameters/Name | LWGJ-300 I-steel cold bending machine |
| Maximum bending area | 250 cm2 |
| Bending speed | 6-6.2 m/min |
| Bending limit | S=345 MPa |
| Specification of machine | 25# |
| Working pressure of hydraulic system | ≤16MPa |
| Hydraulic cylinder propulsion speed | 1-10 mm/s |
| Hydraulic cylinder jacking force | 50 T |
| Effective stroke of hydraulic cylinder | 300mm |
| Rated oil pump pressure | 16 Mpa |
| Reducer type | 42# |
| Driving power | 5.5*2 |
| Totol power | 18 kw |
| Diamension(L*W*H) | 2800*1600*1800 mm |
| Weight | 2350 KG |

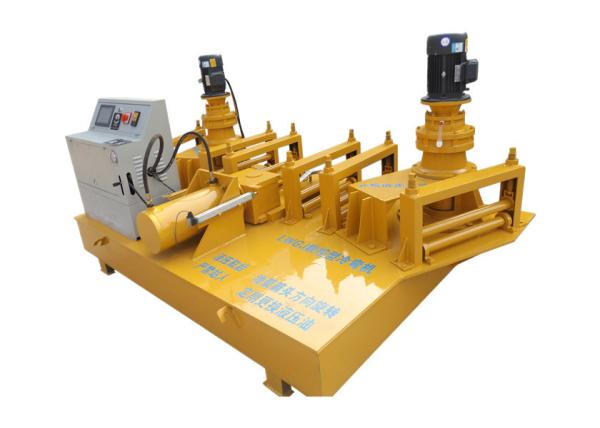

Pictures of Rebar Bending Machine:
|
|
