Advanced Technology Rational Structure High Pressure Grouting Machine Universal
High Pressure Grouting Machine
Characteristics of High Pressure Grouting Machine:
High pressure grouting machine is composed of main pump, belt gear
system, seat, safety stop valve, motor (diesel engine) and special
tools, etc. It is an independent working unit. The plunger is
lubricated and cooled by oil to ensure the reliability of the seal.
The hydraulic end of the main pump is mainly composed of plunger,
plunger seal assembly, suction and discharge valve assembly, pump
head, suction channel and other components. The power end is mainly
composed of spindle, transmission gear, crankshaft, connecting rod,
crosshead sliding sleeve, crankshaft box and so on.
Parameters of High Pressure Grouting Machine:
| Type | TY55K | TY90k |
| Motor power | 55kw | 90kw |
| Type of motor | YE2VP280M-6 | YE2VP280M-4 |
| Function form | Horizontal reciprocating single acting plunger | Horizontal reciprocating single acting plunger |
| Plunger quantity | 3 | 3 |
| Plunger diameter | 50mm | 50 mm |
| Working stroke | 100 mm | 100 mm |
| Input speed | 390～900 R/min | 590～1330 R/min |
| Discharge volume | 32～75 L/min | 50～110 L/min |
| Working pressure | 40-48 Mpa | 33 Mpa |
| Suction pipe diameter | 64 mm | 64 mm |
| Discharge pipe diameter | 19 mm | 19 mm |

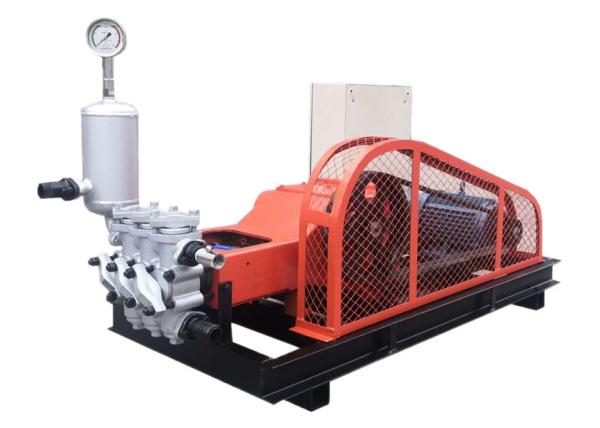

Pictures of High Pressure Grouting Machine:
|
|
