Hydraulic Drive high pressure Mortar Grout Pump Machine nice performance

Mortar Grout Pump Machine

Details of mortar grout pump machine:

1. The V-belt and a pair of gears transmit the motor's rotary motion to the crankshaft. The connecting rod and crosshead allow to reciprocate. The gearbox is closed, and splashes are used to lubricate the moving parts.
2. The mortar is sent to the air by the suction valve through the pump cylinder pressure, and the bleeder valve and pressure safety device are installed on the air chamber.
3. The pump adopts the electrical automatic control safety device.
4. When the air chamber pressure exceeds the rated working pressure, the main circuit main circuit is cut off through the control circuit to automatically stop the motor.

Parameters of mortar grout pump machine:

Working performance of mortar grout pump machine:

1.Because of full hydraulic pressure, small volume and light weight, it can be used in a wide range of construction.
2.The adjustable performance is better: within the design range, the pressure displacement of the pump can be arbitrarily adjusted. When the pressure exceeds the allowable pressure, the relief valve will automatically open and the cylinder and working cylinder will stop working, thus playing a safe role.
3.In coal mines and other flammable and explosive construction sites, the series of hydraulic grouting motors use explosion-proof motors, but also can be used safely.
4.The anti-seismic pressure gauge is installed in the oil pressure system, which can accurately reflect the working state of the pump.
5.This series of hydraulic grouting pumps can also be used as water pumps, sewage pumps and mud pumps.

Characteristics and scope of application of mortar grout pump machine:

1. In highway pavement maintenance, it is used for grouting filling of cement pavement collapse.
2. In the pre-stressed component engineering, it is used for the expansion of mortar injection.
3. In underwater engineering, the dam is strengthened.
4. It is used for grouting slope protection in national defense, national defense engineering and mine tunnel construction.
5. It is used to transport fly ash slurry in thermal power plants.
6. In the chemical industry and paper industry, pulp raw materials and wastes are transported.
7. In metallurgy, iron and steel and other industries, it is used to maintain the grouting of blast furnaces and other equipment.

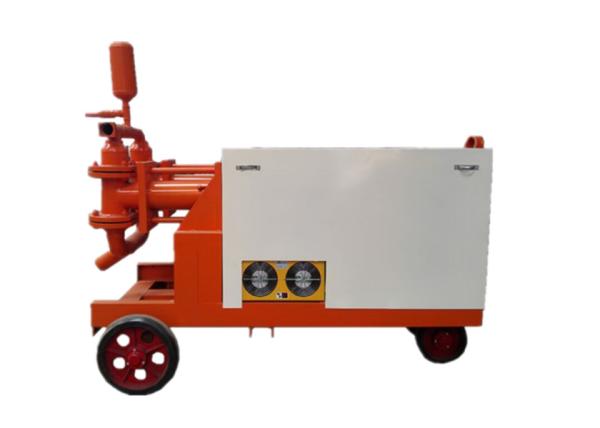

Picture of mortar grout pump machine:

Henan Tytion Machinery Co., Ltd is a joint venture enterprise which is mainly offer construction support machine, such as: cement grout pump; high pressure grouting pump; mortar grout pump; hydraulic grouting pump (for two liquid grouting); dry mix shotcrete machine; wet shotcrete machine; concrete pump; tunnel machine; and environment friendly equipment: scrap shear machine and hydraulic baling machine.
